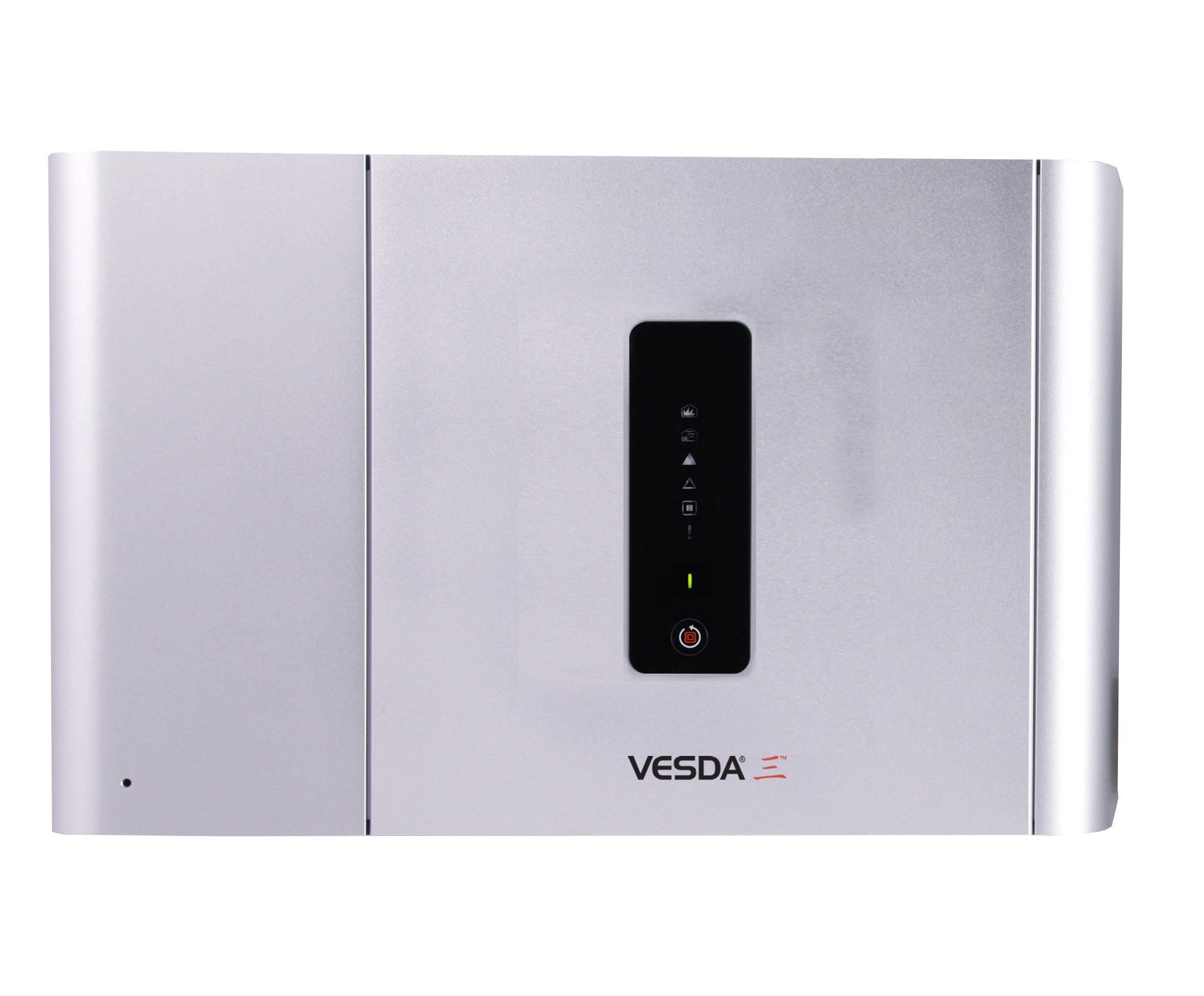

VESDA-E VEU s LED, ESSERBUS

VEU-A00-EBTI

Stejné jako VEU-A00 ale s integrovaným esserbus® kopplerem pro přímou integraci na kruh esserbus®.

Vlastnosti & Výhody
Technické údaje
Příslušenství
Dokumenty

Certifikováno dle EN 54-20 pro třídy A, B a C:
• max. 80 nasávacích otvorů pro třídu A
• max. 80 nasávacích otvorů pro třídu B
• max. 100 nasávacích otvorů pro třídu C

Provozní napětí	18 - 28V DC
Klidový proud @ 24 V DC	cca. 625 mA
Poplachový proud @ 24 V DC	cca. 740 mA (4 kopplerové skupiny)
Zátěž kontaktů relé	2 A @ 30 V DC NO/NC
Citlivost pro poplach	0,001% - 20% obs/m
Svorky pro připojení	0,2 - 2,5 mm²
Max. délka potrubí	800 m rozvětvení, 400 m jednotlivé trubky
Monitorovaná oblast	1600 m² (6500 m²)
Stupeň krytí	IP 40
Hmotnost	cca. 5,37 kg
Rozměry	Š: 350 mm V: 225 mm H: 135 mm

Typ	Jméno	Velikost
Promotional - Brochures
	Brochure_Very Early Warning Aspirating Smoke Detection_Version: 02.2020	4 MB
Technical Documentation
Typ	Jméno	Velikost
	Product data Sheet_VESDA-E VEU with esserbus Transponsder VEU-A00-EBTI, VEU-A10-EBTI_11.2020	449 KB
